Pulsar Telos LRF XP50 Thermal Monocular

Germanium F50/1.0 lens features high infrared transmission in the LWIR range. Due to the high precision manufacturing of the optical elements of the lens, the image generated by the Merger LRF thermal imaging binoculars sensor is distinguished for its clarity and detailing.

A powerful long-distance F50/1.0 objective lens combined with a 640x480@17µm highly-sensitive thermal imaging sensor provides exceptional detection capabilities. A standard 1.8m tall object can be detected up to 1800 m away in complete darkness.

The Telos has a built-in video recorder. The increased 64GB internal memory of the Telos can store hours of video and tens of thousands of photos. One touch of a button is enough to take a photo of an interesting scene or start recording video.

Built-in Wi-Fi connects the Merger LRF to Android and iOS smartphones via the Stream Vision 2 mobile application. This opens up a wide range of options including wireless device software updates, real-time image transmission from the device to the smartphone screen, publication on social media of photo and video content captured by the device or transfer to messengers, remote control of digital device functions and access to the latest news from Pulsar. Moreover, registered users receive 16 GB of cloud storage for photos and videos recorded with the device.

A high-contrast AMOLED display has an improved colour rendering, power saving and quick-response, providing sharp and smooth images observing even under frosty conditions.

In Merger LRF thermal imagers, the standard smartphone connection frequency range via a 2.4 GHz Wi-Fi channel is complemented with an effective 5 GHz range. The 5 GHz connection offers better bandwidth, a faster data transfer rate, noise immunity and improved connection stability, resulting in more productive and easier operation of the thermal imager with a smartphone.

Housing, power unit, optics and electronics of Merger LRF are designed with regard to applications in wide range of temperatures. Merger ensures reliable and effective performance in freezing cold up to -25°C.

IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.

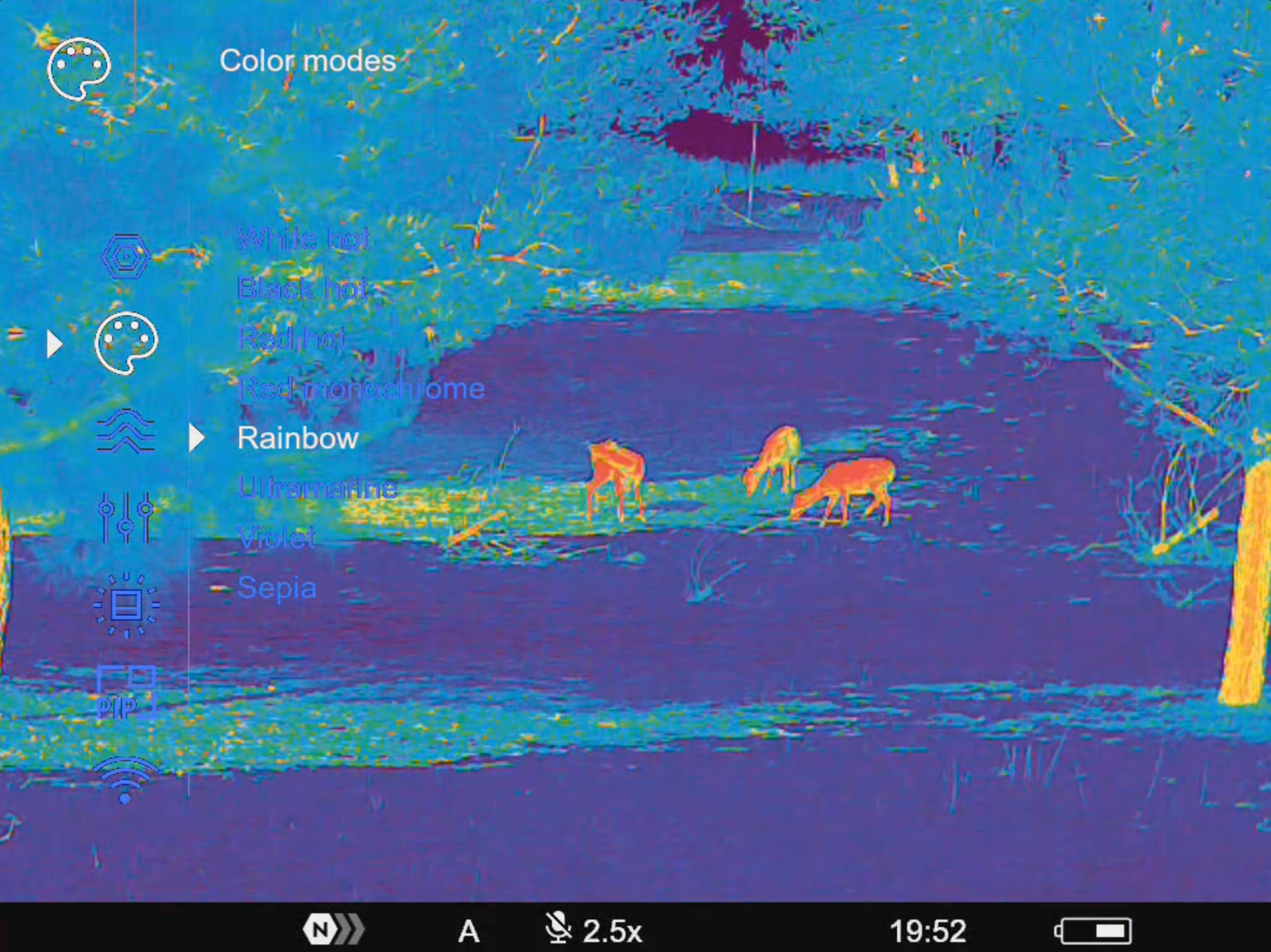

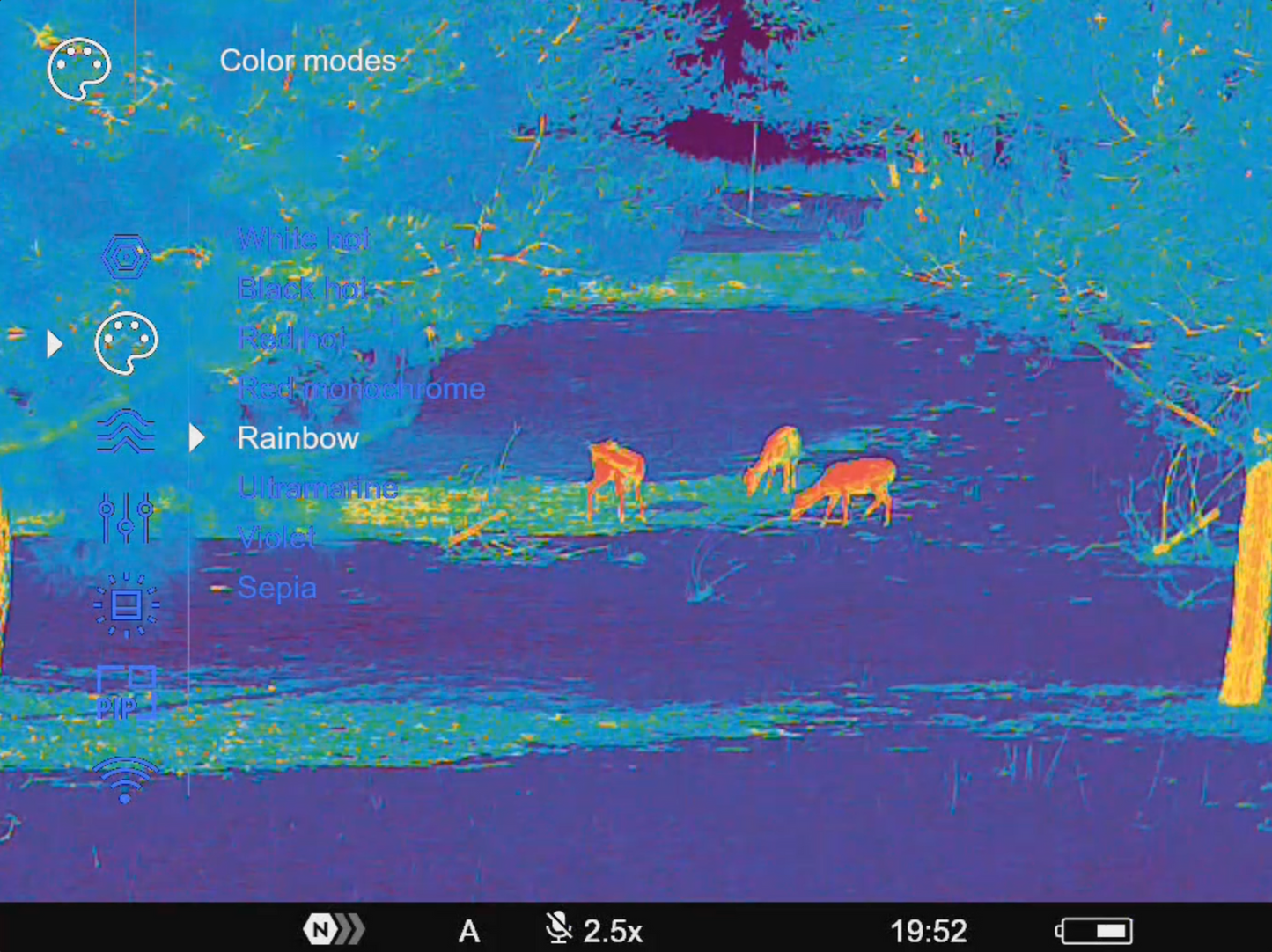

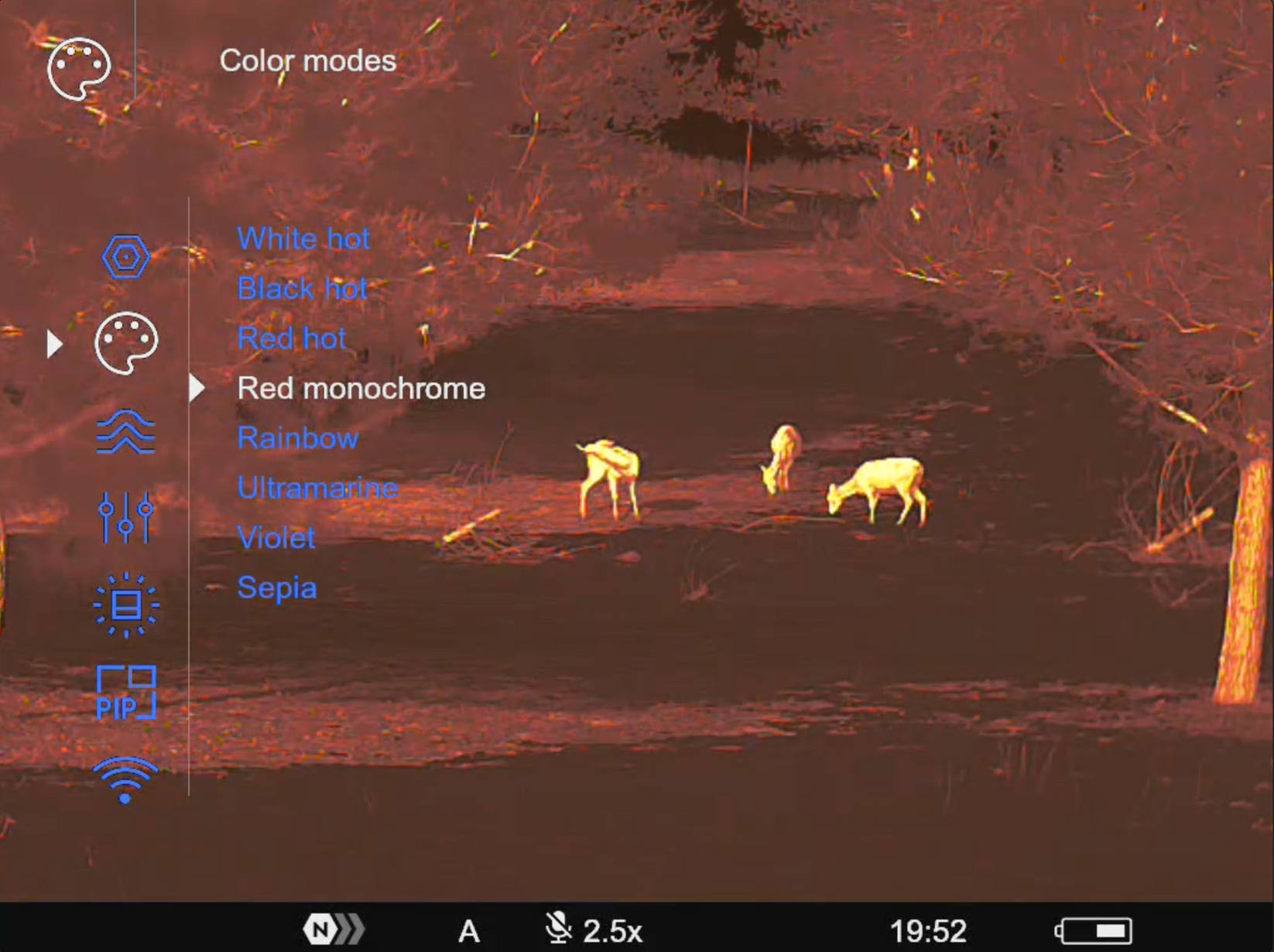

A choice of 8 color palettes allows the user to optimize the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification, while Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

User mode

Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.

Features:

• Sensor 640x480 pix. @ 17 µm (sNETD <15 mK)
• Objective lens F50 / 1.0
• Magnification, x 2.5 – 10 (x4 zoom)
• Field of view (HxV), degrees / m@100m 12.4x9.3 / 21.8x16.3
• Microbolometer resolution: 640x480
• Frame Rate: 50Hz
• NETD: <18mk
• Objective lens: F50/1.0
• Display resolution: 1024x768
• Display type: AMOLED
• Magnification: 2.5-10x (x4 digital zoom)
